| 型号 | 尺寸(mm) | 包装数（pcs） | ||||||

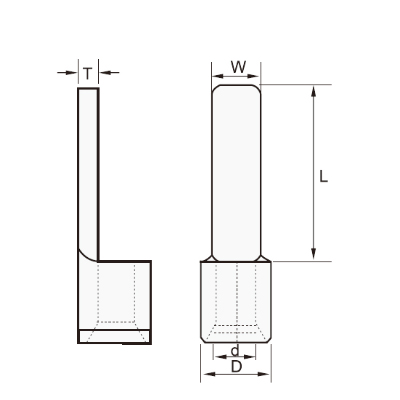

| W | F | L | E | D | d | T | ||
| C45 1.5-12-6 | 5.8 | 12.0 | 17.0 | 5.0 | 3.3 | 2.1 | 0.6 | 1000 |
| C45 1.5-15-6 | 5.8 | 15.0 | 20.0 | 5.0 | 3.3 | 2.1 | 0.6 | 1000 |
| C45 2.5-12-6 | 5.8 | 12.0 | 17.0 | 5.0 | 4.0 | 2.8 | 0.6 | 1000 |
| C45 2.5-15-6 | 5.8 | 15.0 | 20.0 | 5.0 | 4.0 | 2.8 | 0.6 | 1000 |
| C45 4-12-6 | 5.8 | 12.0 | 17.9 | 5.9 | 5.2 | 3.4 | 0.9 | 500 |
| C45 4-15-6 | 5.8 | 15.0 | 20.9 | 5.9 | 5.2 | 3.4 | 0.9 | 500 |
| C45 6-12-6 | 5.8 | 12.0 | 18.8 | 6.8 | 6.1 | 4.3 | 0.9 | 500 |
| C45 6-15-6 | 5.8 | 15.0 | 21.8 | 6.8 | 6.1 | 4.3 | 0.9 | 500 |
| C45 10-14-6 | 5.8 | 14.0 | 22.3 | 8.3 | 7.8 | 5.4 | 1.2 | 500 |
| C45 16-15-6 | 5.8 | 15.0 | 25.3 | 10.3 | 9.7 | 7.3 | 1.2 | 500 |
| C45 16-15-8 | 7.8 | 15.0 | 25.3 | 10.3 | 9.7 | 7.3 | 1.2 | 500 |
| C45 16-27-7 | 6.8 | 27.0 | 37.3 | 10.3 | 9.7 | 7.3 | 1.2 | 500 |
| C45 25-16-7 | 6.8 | 16.0 | 28.0 | 12.0 | 12.1 | 8.7 | 1.7 | 200 |
| C45 25-16-8 | 7.8 | 16.0 | 28.0 | 12.0 | 12.1 | 8.7 | 1.7 | 200 |
| C45 25-26-7 | 6.8 | 26.0 | 38.0 | 12.0 | 12.1 | 8.7 | 1.7 | 200 |
| C45 35-17-8 | 7.8 | 17.0 | 30.5 | 13.5 | 13.0 | 9.6 | 1.7 | 100 |
| C45 50-18-8 | 7.8 | 18.0 | 31.5 | 13.5 | 15.0 | 11.6 | 1.7 | 100 |
| C45 50-30-8 | 7.8 | 30.0 | 43.5 | 13.5 | 15.0 | 11.6 | 1.7 | 100 |
| C45 70-21-10 | 9.8 | 20.5 | 38.5 | 18.0 | 17.5 | 13.5 | 2.0 | 100 |
