| 型号 | 尺寸 | 包装数（pcs） | |||||||

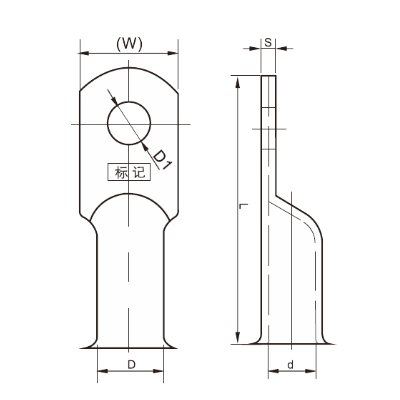

| W | D | d | F | D1 | L | T | T1 | ||
| JG 10-6 | 12 | 8 | 5.4 | 7.5 | 6.4 | 36 | 1.3 | 2.3 | 200 |
| JG 10-8 | 12 | 8 | 5.4 | 7.5 | 8.4 | 36 | 1.3 | 2.3 | 200 |
| JG 10-10 | 14 | 8 | 5.4 | 7.5 | 10.4 | 36.5 | 1.3 | 2 | 200 |
| JG 16-6 | 13 | 9 | 6.4 | 8 | 6.4 | 39 | 1.3 | 2.4 | 200 |
| JG 16-8 | 13 | 9 | 6.4 | 8 | 8.4 | 39 | 1.3 | 2.4 | 200 |
| JG 16-10 | 14.8 | 9 | 6.4 | 8 | 10.4 | 39.5 | 1.3 | 2.4 | 200 |
| JG 16-12 | 17 | 9 | 6.4 | 8 | 12.4 | 39.5 | 1.3 | 1.9 | 200 |
| JG 25-6 | 14 | 10 | 7.4 | 9 | 6.4 | 44 | 1.3 | 2.5 | 200 |
| JG 25-8 | 14.2 | 10 | 7.4 | 9 | 8.4 | 44 | 1.3 | 2.5 | 200 |
| JG 25-10 | 15.3 | 10 | 8.4 | 9 | 10.4 | 44 | 1.3 | 2.4 | 200 |
| JG 25-12 | 16 | 10 | 7.4 | 9 | 12.4 | 44 | 1.3 | 2.1 | 200 |
| JG 35-6 | 16 | 11 | 8.4 | 9 | 6.4 | 50 | 1.3 | 2.6 | 200 |
| JG 35-8 | 16 | 11 | 8.4 | 9 | 8.4 | 50 | 1.3 | 2.6 | 200 |
| JG 35-10 | 16 | 11 | 8.4 | 9 | 10.4 | 50 | 1.3 | 2.6 | 200 |
| JG 35-12 | 18.4 | 11 | 8.4 | 9 | 12.4 | 50 | 1.3 | 2.2 | 200 |
| JG 50-6 | 19 | 13 | 10.4 | 11 | 6.4 | 53 | 1.3 | 2.6 | 100 |
| JG 50-8 | 19 | 13 | 10.4 | 11 | 8.4 | 53 | 1.3 | 2.6 | 100 |
| JG 50-10 | 19 | 13 | 10.4 | 11 | 10.4 | 53 | 1.3 | 2.6 | 100 |
| JG 50-12 | 19 | 13 | 10.4 | 11 | 12.4 | 53 | 1.3 | 2.6 | 100 |
| JG 50-14 | 22.5 | 13 | 10.4 | 11 | 14.4 | 53 | 1.3 | 2.1 | 100 |
| JG 50-16 | 22.5 | 13 | 10.4 | 11 | 16.4 | 53 | 1.3 | 2.1 | 100 |
| JG 70-8 | 23 | 15.8 | 12.2 | 13 | 8.4 | 59 | 1.8 | 3.5 | 50 |
| JG 70-10 | 23 | 15.8 | 12.2 | 13 | 10.4 | 59 | 1.8 | 3.5 | 50 |
| JG 70-12 | 23 | 15.8 | 12.2 | 13 | 12.4 | 59 | 1.8 | 3.5 | 50 |
| JG 70-14 | 23 | 15.8 | 12.2 | 13 | 14.4 | 59 | 1.8 | 3.5 | 50 |
| JG 70-16 | 23 | 15.8 | 12.2 | 13 | 16.4 | 59 | 1.8 | 3.5 | 50 |
| JG 95-8 | 26.2 | 18 | 14.4 | 13.6 | 8.4 | 63.5 | 1.8 | 3.5 | 50 |
| JG 95-10 | 26.2 | 18 | 14.4 | 13.6 | 10.4 | 63.5 | 1.8 | 3.5 | 50 |
| JG 95-12 | 26.2 | 18 | 14.4 | 13.6 | 12.4 | 63.5 | 1.8 | 3.5 | 50 |
| JG 95-14 | 26.2 | 18 | 14.4 | 13.6 | 14.4 | 63.5 | 1.8 | 3.5 | 50 |
| JG 95-16 | 26.2 | 18 | 14.4 | 13.6 | 16.4 | 63.5 | 1.8 | 3.5 | 50 |
| JG 120-8 | 27.5 | 19 | 15 | 16 | 8.4 | 70.5 | 2 | 4 | 50 |
| JG 120-10 | 27.5 | 19 | 15 | 16 | 10.4 | 70.5 | 2 | 4 | 50 |
| JG 120-12 | 27.5 | 19 | 15 | 16 | 12.4 | 70.5 | 2 | 4 | 50 |
| JG 120-14 | 27.5 | 19 | 15 | 16 | 14.4 | 70.5 | 2 | 4 | 50 |
| JG 120-16 | 27.5 | 19 | 15 | 16 | 16.4 | 70.5 | 2 | 4 | 50 |
| JG 150-8 | 32 | 22 | 17 | 17.2 | 8.4 | 76.5 | 2.5 | 5 | 20 |
| JG 150-10 | 32 | 22 | 17 | 17.2 | 10.4 | 76.5 | 2.5 | 5 | 20 |
| JG 150-12 | 32 | 22 | 17 | 17.2 | 12.4 | 76.5 | 2.5 | 5 | 20 |
| JG 150-14 | 32 | 22 | 17 | 17.2 | 14.4 | 76.5 | 2.5 | 5 | 20 |
| JG 150-16 | 32 | 22 | 17 | 17.2 | 16.4 | 76.5 | 2.5 | 5 | 20 |
| JG 185-8 | 34.7 | 24 | 19 | 19.2 | 8.4 | 85.5 | 2.5 | 5 | 20 |
| JG 185-10 | 34.7 | 24 | 19 | 19.2 | 10.4 | 85.5 | 2.5 | 5 | 20 |
| JG 185-12 | 34.7 | 24 | 19 | 19.2 | 12.4 | 85.5 | 2.5 | 5 | 20 |
| JG 185-14 | 34.7 | 24 | 19 | 19.2 | 14.4 | 85.5 | 2.5 | 5 | 20 |
| JG 185-16 | 34.7 | 24 | 19 | 19.2 | 16.4 | 85.5 | 2.5 | 5 | 20 |
| JG 240-8 | 38 | 26 | 21 | 20 | 8.4 | 92.5 | 2.5 | 5 | 20 |
| JG 240-10 | 38 | 26 | 21 | 20 | 10.4 | 92.5 | 2.5 | 5 | 20 |
| JG 240-12 | 38 | 26 | 21 | 20 | 12.4 | 92.5 | 2.5 | 5 | 20 |
| JG 240-14 | 38 | 26 | 21 | 20 | 14.4 | 92.5 | 2.5 | 5 | 20 |
| JG 240-16 | 38 | 26 | 21 | 20 | 16.4 | 92.5 | 2.5 | 5 | 20 |
| JG 240-20 | 38 | 26 | 21 | 20 | 20.6 | 92.5 | 2.5 | 5 | 20 |
| JG 300-8 | 43.5 | 30 | 24 | 22 | 8.4 | 101 | 3 | 6 | 10 |
| JG 300-10 | 43.5 | 30 | 24 | 22 | 10.4 | 101 | 3 | 6 | 10 |
| JG 300-12 | 43.5 | 30 | 24 | 22 | 12.4 | 101 | 3 | 6 | 10 |
| JG 300-14 | 43.5 | 30 | 24 | 22 | 14.4 | 101 | 3 | 6 | 10 |
| JG 300-16 | 43.5 | 30 | 24 | 22 | 16.4 | 101 | 3 | 6 | 10 |
| JG 300-20 | 43.5 | 30 | 24 | 22 | 20.6 | 101 | 3 | 6 | 10 |
| JG 400 | 49 | 34 | 26.2 | 24 | 16.5 | 113 | 3.9 | 7.8 | 10 |
| JG 500 | 55 | 38 | 30.2 | 26 | 21 | 124 | 3.9 | 7.8 | 10 |
| JG 630 | 65 | 45 | 35.2 | 28 | 21 | 135 | 4.9 | 9.8 | 10 |
