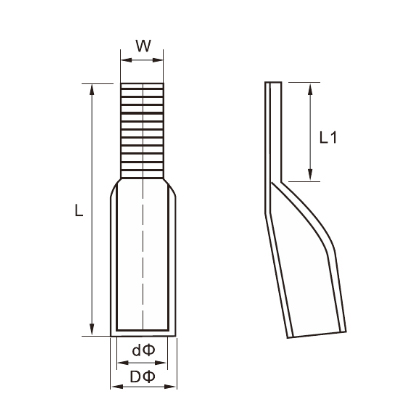

| 型号 | 尺寸(mm) | 包装数 | ||||||
| T1 | T | D | d | L | L1 | W | ||
| C45-4 | 0.5 | 1.0 | 5.0 | 4.0 | 21.5 | 10.0 | 5.0 | 500 |
| C45-6 | 0.7 | 1.2 | 5.5 | 4.1 | 26.6 | 10.0 | 5.0 | 500 |
| C45-10 | 0.8 | 1.6 | 6.5 | 4.9 | 29.5 | 12.0 | 6.0 | 200 |
| C45-16 | 1.0 | 2.0 | 8.0 | 6.0 | 34.2 | 13.0 | 6.8 | 200 |
| C45-25 | 1.2 | 2.4 | 9.5 | 7.1 | 36.6 | 13.5 | 6.5 | 200 |
| C45-35 | 1.2 | 2.4 | 11.0 | 8.6 | 38.5 | 13.0 | 6.6 | 200 |
| C45-50 | 1.3 | 2.6 | 13.0 | 10.4 | 42.8 | 13.0 | 6.6 | 100 |
| C45-70 | 1.5 | 3.0 | 15.0 | 12.0 | 46.5 | 13.0 | 7.0 | 100 |
| C45-95 | 1.7 | 3.4 | 17.5 | 14.1 | 50.0 | 15.0 | 9.0 | 100 |
